Bluetooth® Low Energy (BLE)
The Data Logger Wireless has support for Bluetooth®1 (BLE 4.2) which allows it to read broadcast data or connect to supported equipment using GATT or other Bluetooth® services.
Device support can easily be incorporated on request, contact us to discuss your requirements.
Supported Devices
For BLE broadcast devices like the Ruuvi® devices and BLE tags, there's no pairing or configuration necessary, a nearby Data Logger Wireless device will continuously scan for nearby devices and collect & report their data.
Ruuvi® Air
The Ruuvi®2 Air is a compact & accurate air quality and environment sensor and is perfect for monitoring a remote site or equipment placed anywhere in the world.

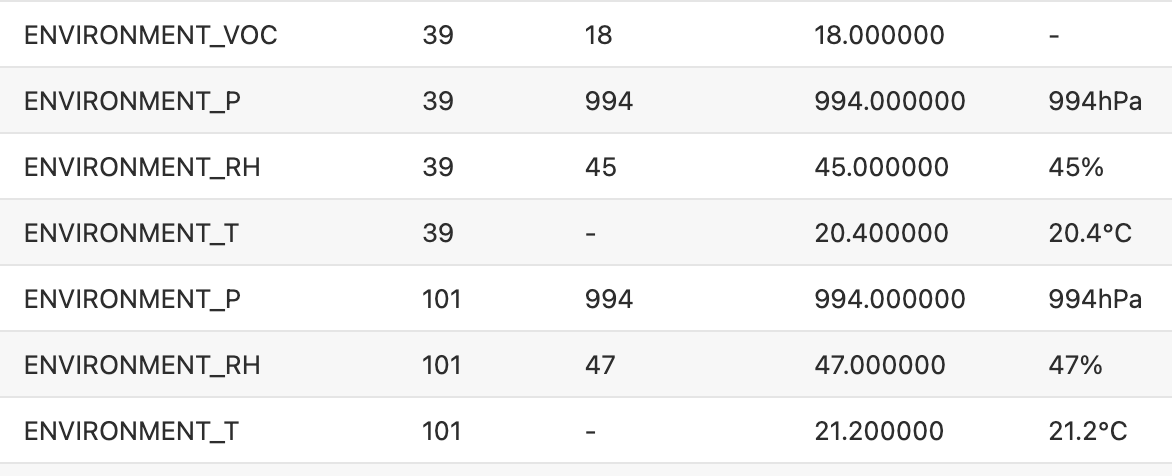

| Value | Description |
|---|---|
| Environment Pressure [hPa] | Atmospheric pressure range 100-1124 hPa |
| Air Humidity [%] | Relative air humidity |
| Air Temperature [°C] | Air temperature |
| Volatile Organic Compound [VOC index] | Amount of evaporated carbon based matter in air |
| CO2 [PPM] | Concentration of CO2 in air |
Additional data fields E1, 6 are available and can be supported upon request.
RuuviTag
RuuviTag is an affordable temperature and physical conditions sensor, the data supported by the Data Logger Wireless is:
| Value | Description |
|---|---|
| Environment Pressure [hPa] | Atmospheric pressure range 100-1124 hPa |
| Air Humidity [%] | Relative air humidity |
| Air Temperature [°C] | Air temperature |
Additional data fields 5 are available and can be supported upon request.
